FI Databoxes
Steel databoxes, for sub floor data systems
FI databoxes are a volume installation product, designed to be used in the sub floor. A reversible lid allows the user to choose between 2 sizes of gland hole. 6C cutouts for terminating data into, with keyed gland holes for connecting flexible conduit
​
-
Steel construction
-
Keyed gland entry, 25mm or 32mm (2 way box has 20mm & 25mm)
-
Space for I.D. labelling
-
Fast release 2-screw lid
-
Standard 6C size cutouts for data termination
-
Horizontal and vertical orientations
.jpg)
FI Box 0/2H
2 way horizontal databox, with 20mm/25mm gland hole
(W) 65mm x (D) 78mm x (L) 135mm
FI Box 0/2V
2 way vertical databox, with 20mm/25mm gland hole
(W) 65mm x (D) 78mm x (L) 135mm
FI Box 0/4H
4 way horizontal databox, with 25mm/32mm gland hole
(W) 65mm x (D) 78mm x (L) 192mm
FI Box 0/4V
4 way vertical databox, with 25mm/32mm gland hole
(W) 65mm x (D) 78mm x (L) 192mm

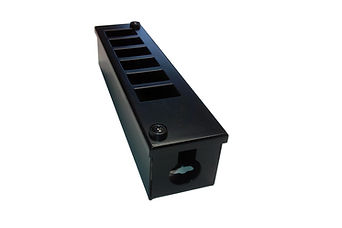

FI Box 0/6H
6 way horizontal databox, with 25mm/32mm gland hole
(W) 65mm x (D) 78mm x (L) 256mm
FI Box 0/6V
6 way vertical databox, with 25mm/32mm gland hole
(W) 65mm x (D) 78mm x (L) 256mm
FI Box 0/8V
8 way vertical databox, with 25mm/32mm gland hole
(W) 65mm x (D) 78mm x (L) 286mm
